2020 Student Thesis Showcase - Part II

We are back with week two of the 2020 Student Thesis Showcase featuring five more projects from schools across the US and Canada! This week’s projects range from large scale community interventions to small-scale material based projects. Check on August 7th for the next group of projects. Make sure to check out Part I of this series!

Finding a New Commons: ReInhabiting the School in Post-Urban Japan by Julia Nakanishi, M.Arch ’20
University of Waterloo / Advisor: Lola Sheppard

Japan’s megacities are often captured as dense, dynamic, and ever-expanding. These images, disseminated in popular media, belie a growing national phenomenon: urban migration, a declining birthrate, and an aging population have transformed Japan’s countryside over the past thirty years. These demographic changes have had a slow but dramatic effect, resulting in socio-economic decline, abandoned buildings, and a loss of local cultures across the country. This thesis explores how reinhabited architecture might facilitate the preservation of culture, knowledge, education, and community connections to local contexts.

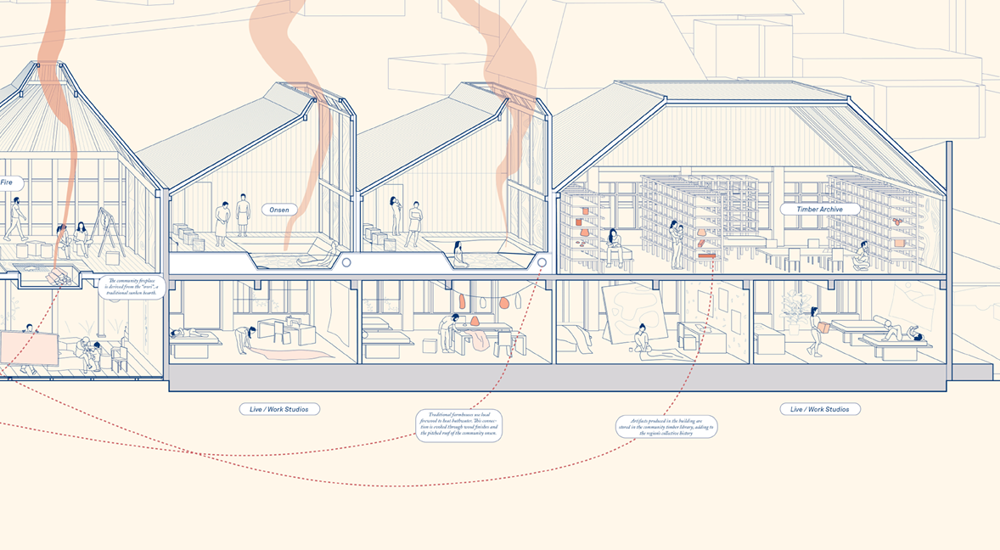

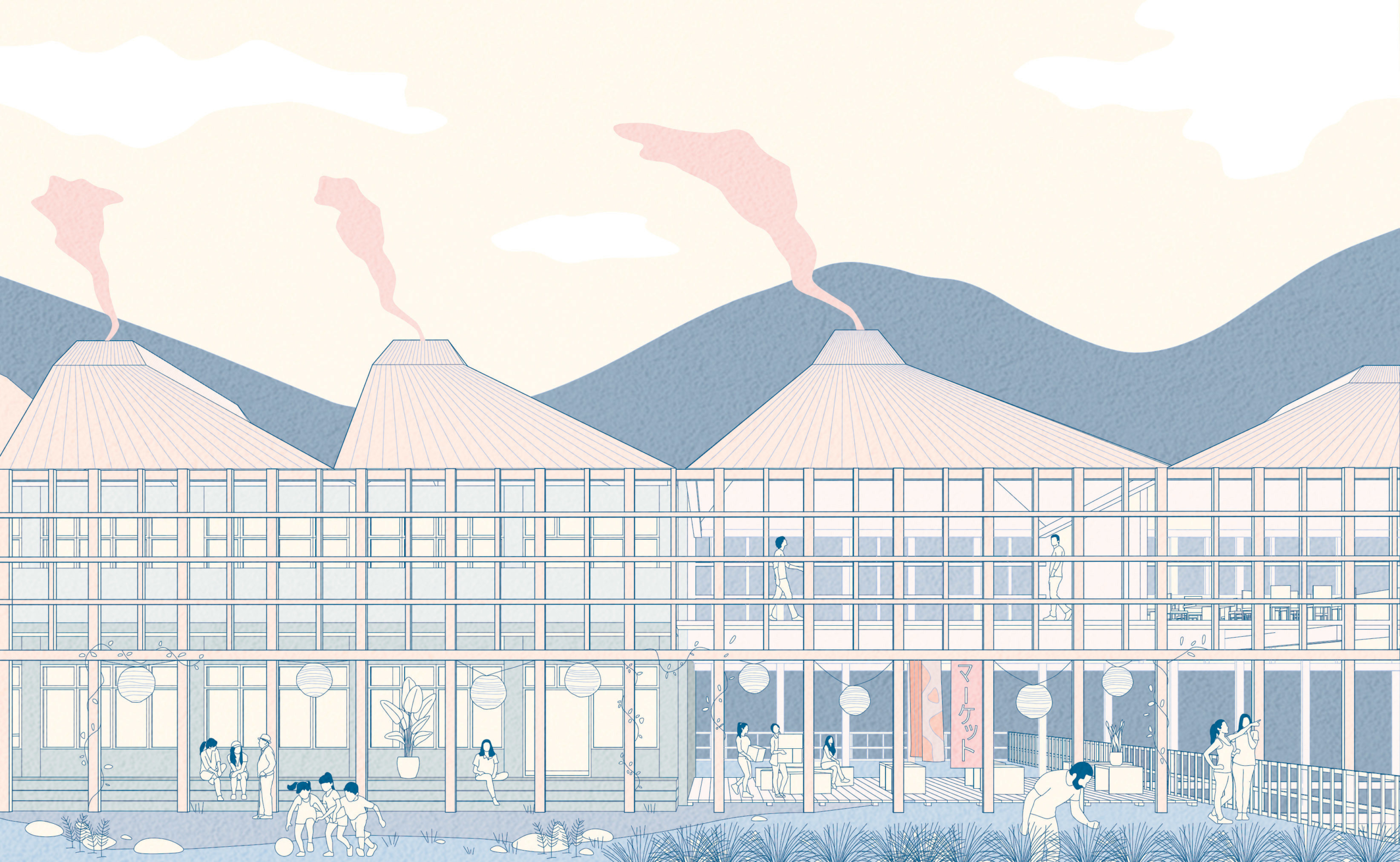

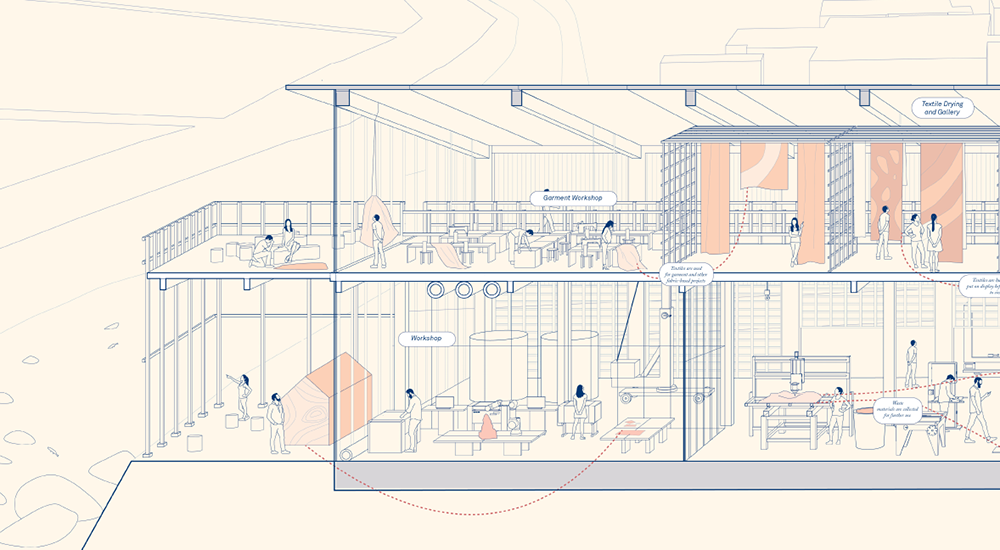

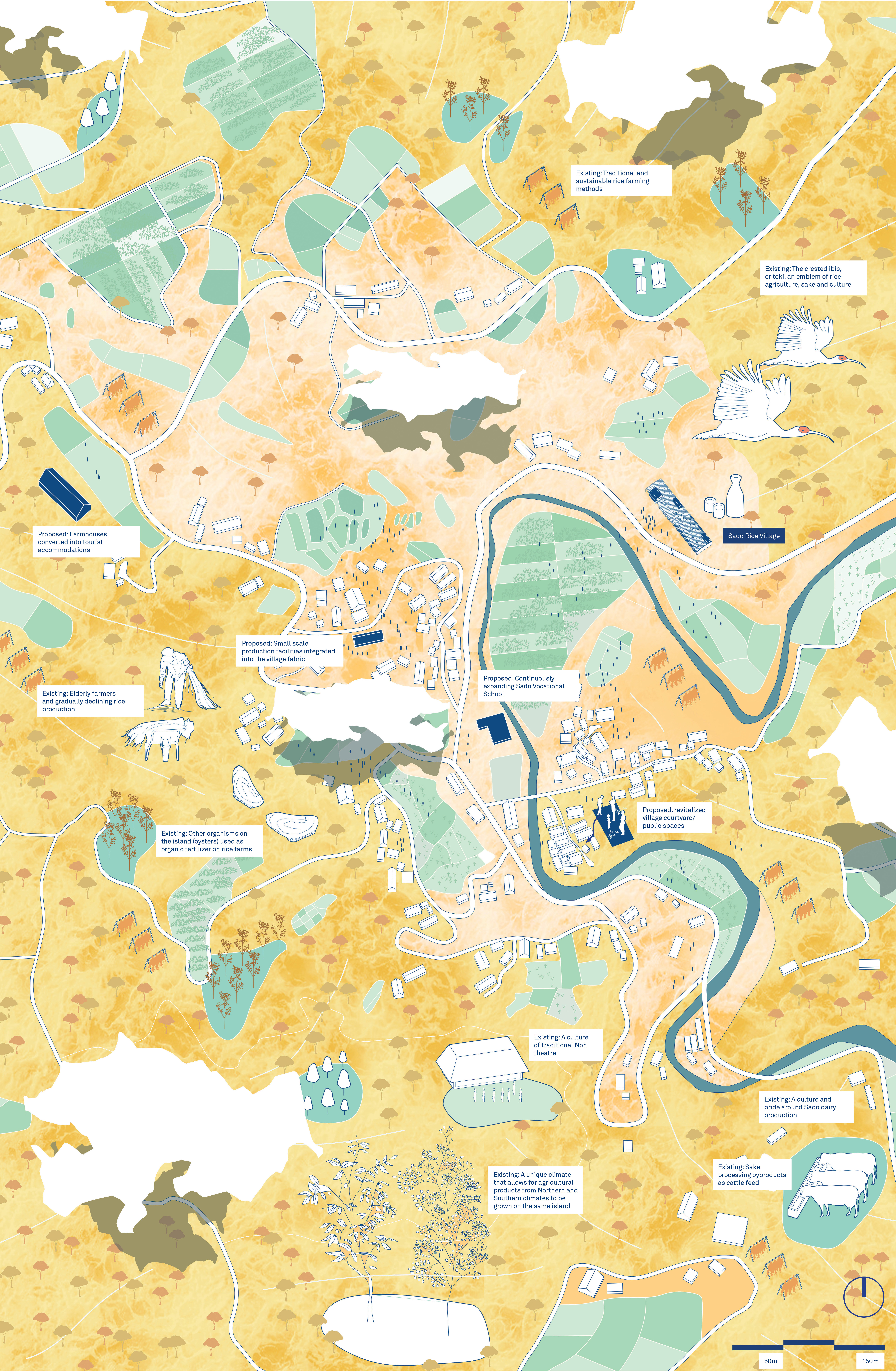

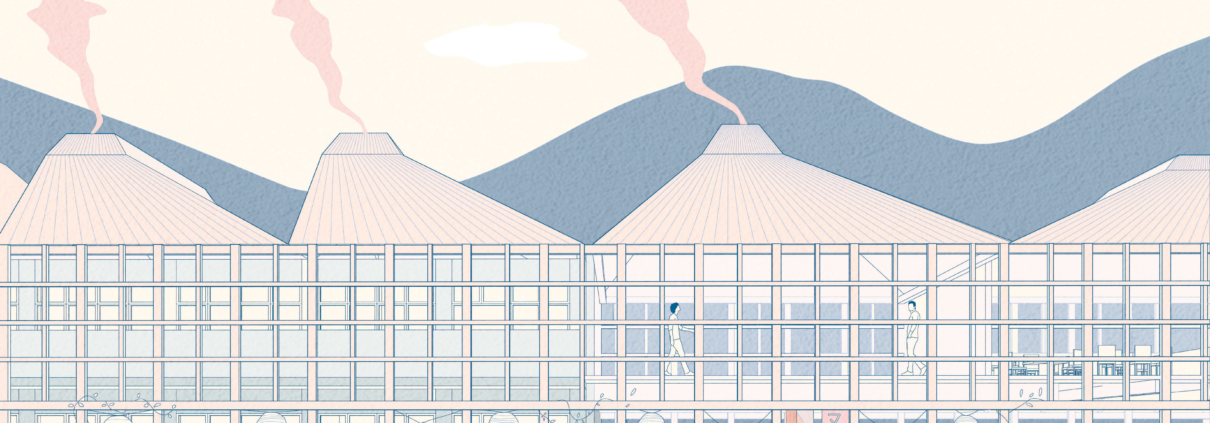

Among the vast number of leftover buildings in Japan’s rural areas, the public school is becoming increasingly prevalent due to waning fertility rates. These vacant structures, referred to as haikō in Japanese, are imbued with collective memory. In villages needing a revival of public and cultural spaces, schools with existing relationships to the community are potent opportunities for reuse. Using fieldwork that documents haikō in three culturally and geographically distinct sites (Sado Island, Niigata Prefecture, Tsuyama Municipality, Okayama Prefecture, and Kamiyama Village, Tokushima Prefecture), along with ethnographic interviews with community members, the three design projects of the thesis explore how the reuse of haikō could generate new rural lifestyles and micro-economies.

The research presents emerging methodologies for designers working in the context of depopulating communities, which includes interviews with communities, analytical site mapping, and techniques of building reuse. This concept of “degrowth” poses a challenge for architecture — a profession significantly influenced by the capitalist structures and administrative frameworks of urban areas. In this way, Japan’s rural areas, or “the post-urban,” are the testing grounds for new design processes, programmatic overlaps, and plurality in public architecture.

Autopsia in Abstentia: The Continued Collapse of Chernobyl by Marco Nieto, M.Arch ‘20
University of Michigan ARCH 662 “Reassembling the Earth” Studio / Advisor: El Hadi Jazairy

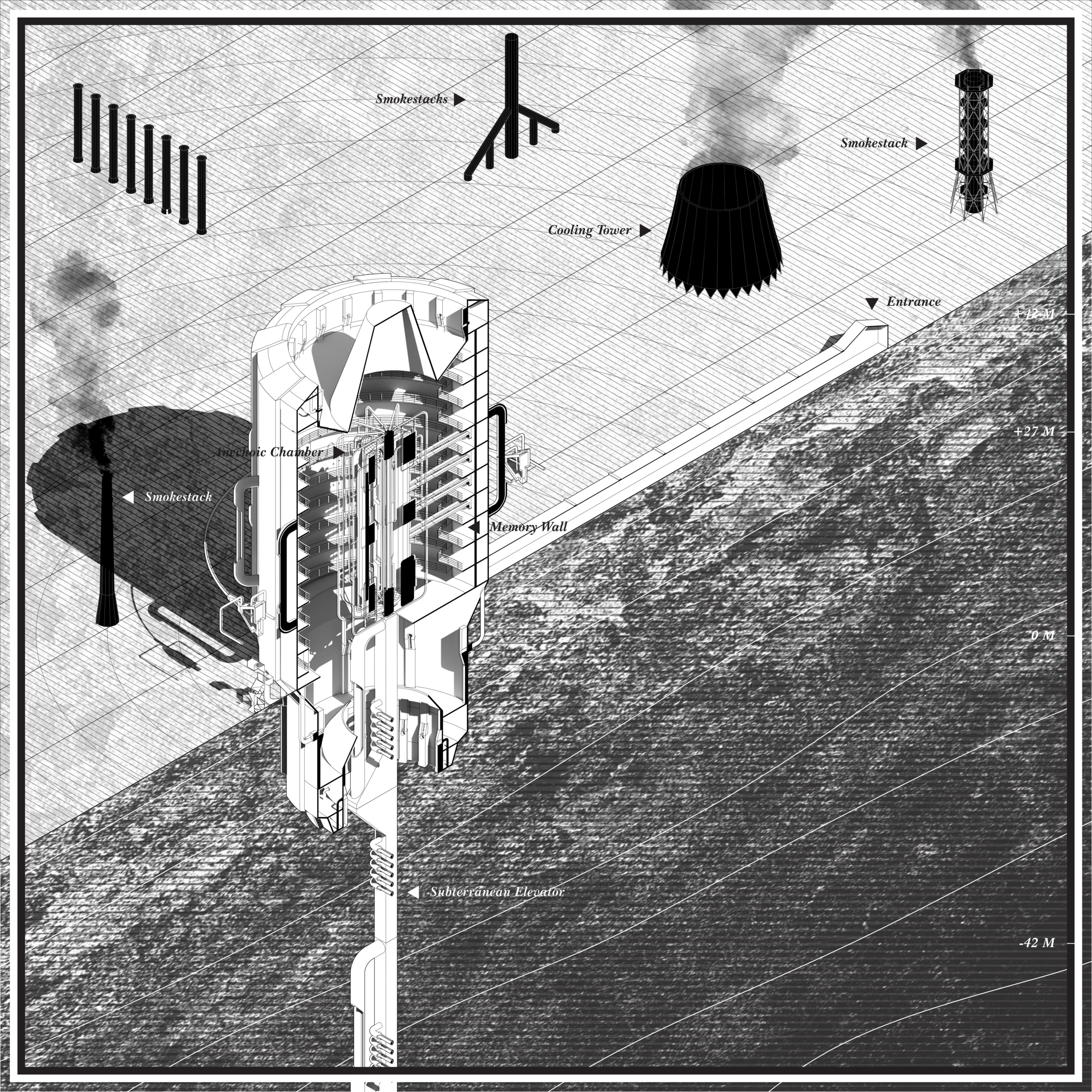

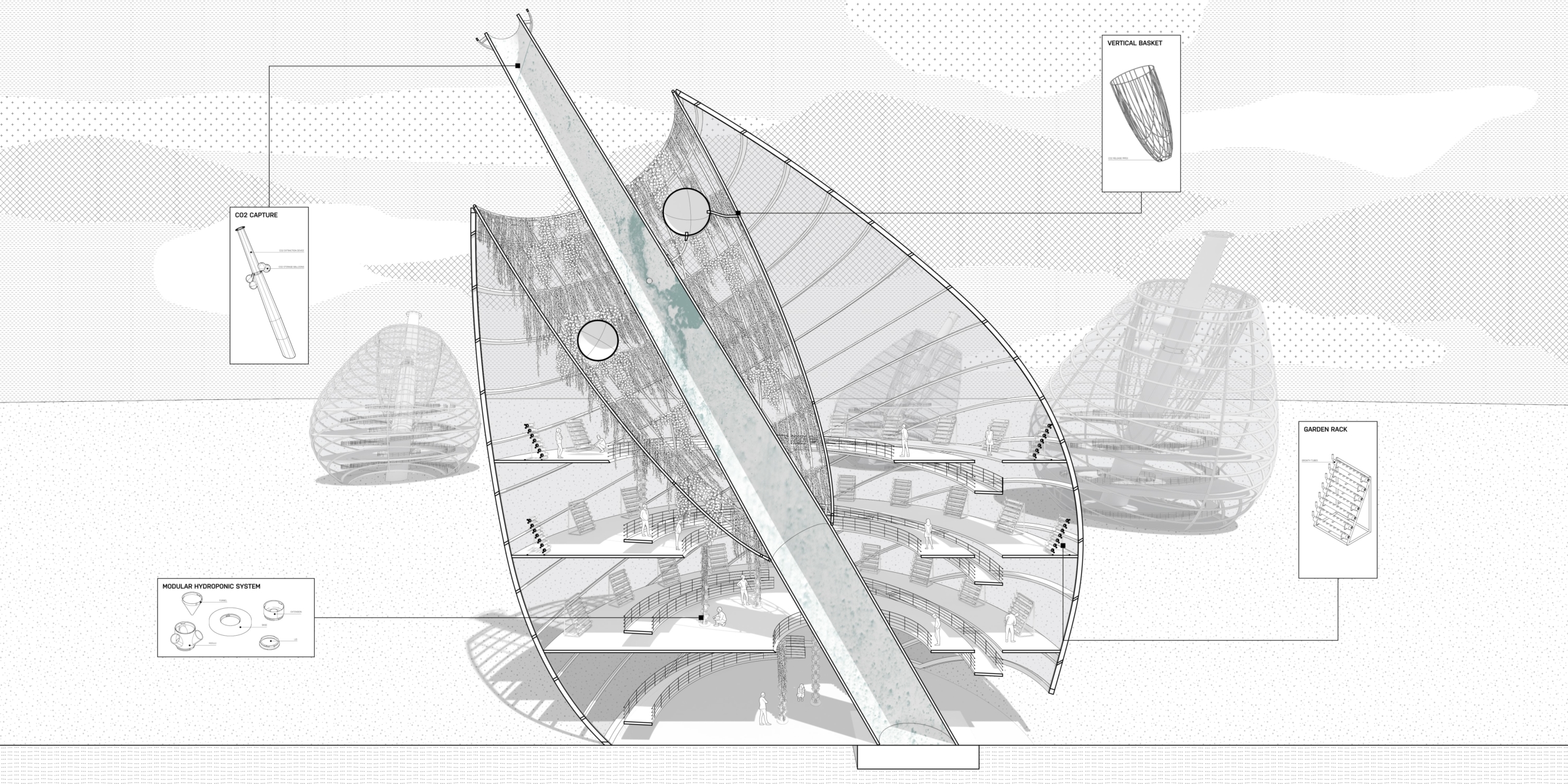

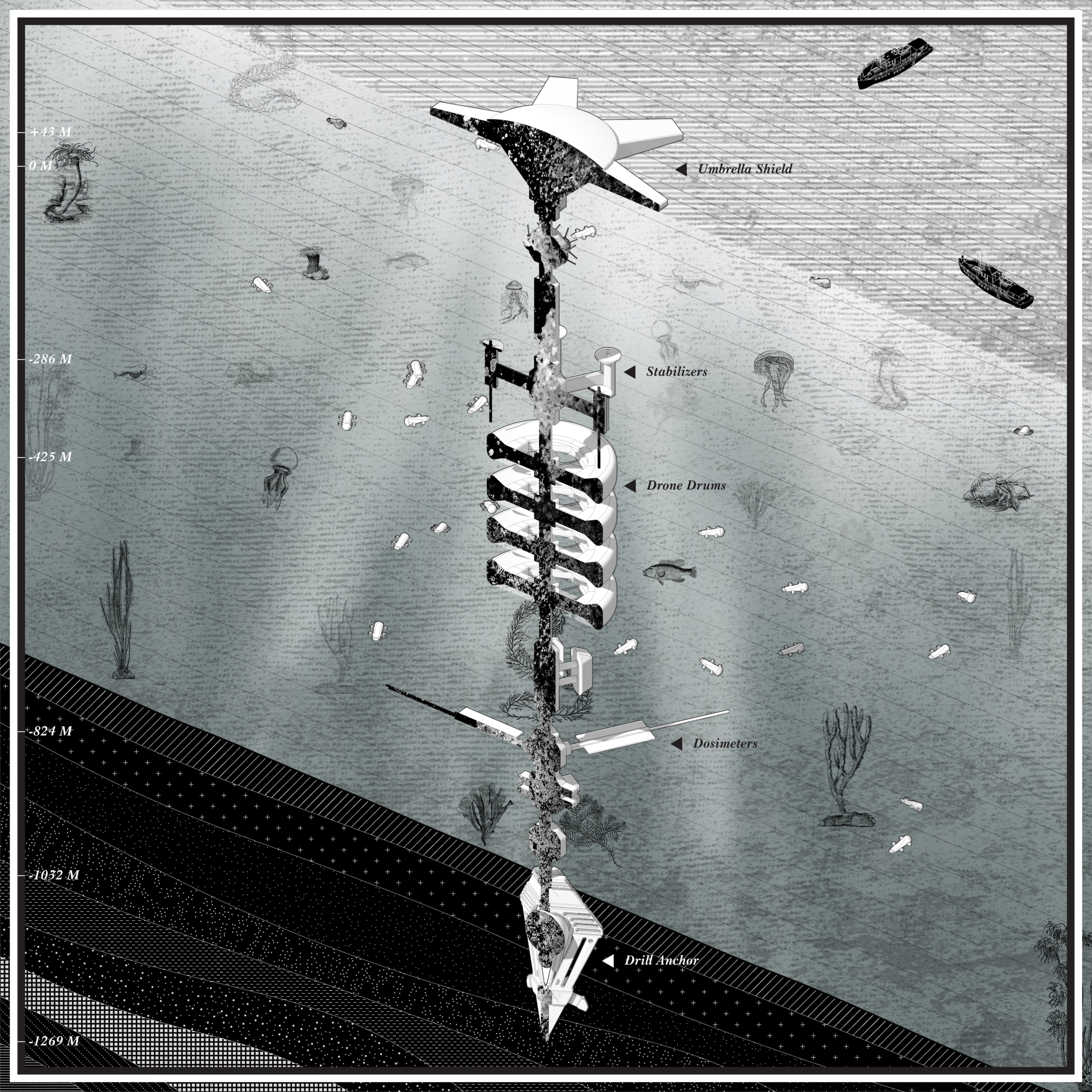

This thesis explores the complicated history and identity crisis of Chernobyl and examines its post-mortem reality through ameliorative apparatus that allows it to heal from its trauma. It investigates the death, or fallout, of an event while not being present at it by using the remnants and traces of its existence. This has helped create a profound framework focused on process and factors of time, allowing for the embedding of five specific interventions that react and respond to the pain of the existing environment: Radiosynthetic Needle, Bioremedial Bubbles, Reverse Repository, Half-Life Lab, and Carbo Conclusus. Read more about the project: http://myumi.ch/Nx3my

This project won the Burton L. Kampner Memorial Award which is presented annually to one student in the thesis program whose final design project has been selected by a Super Jury as the most outstanding. View more award-winning work from Taubman College students

Follow Marco on IG: @m_nieto24

3D Printing Adobe Vaults and Domes by Wanchen Cai, Taoyu Han, Hanyang Hu, Sinae Jung, Vasudha Maiya, Pei Li, Dingtong Wang, Shengrui Xu, Xu Zhang, and Churan Zheng
University of California at Berkeley /
Advisor: Ronald Rael  / Course: ARCH 205

The primary focus of Studio One over the fall semester has been the design and development of 3D printed roofs in the form of vaults and domes. Nubian vault and squinch dome structures, popularized by the Egyptian architect Hassan Fathy in the early 20th century, have been constructed for thousands of years, employing fundamental principles of laying mudbrick in courses that require no shuttering to create roof enclosures. The primary building material for these architectural structures was mud brick, comprised of water, locally available soil, and straw. The coursing of mud bricks by traditional masons followed particular patterns to allow for these complex structures to be constructed without formwork. By emulating and altering these coursing patterns, and using a customized Selective Compliance Assembly Robot Arm (SCARA) robot, an array of complex vault and dome structures can be created through the robotic deposition of an adobe mud admixture.

3D printing earth through vertical layer deposition for walls is relatively straight forward. However, when it comes to printing a roof or enclosures, the self-weight of the adobe often leads to the collapse of the printed roof structure due to gravity. The resolution of this challenge is crucial for the realization of a completely 3D printed building. This research is further extended to the proposal of a shelter in Darfur, Sudan.

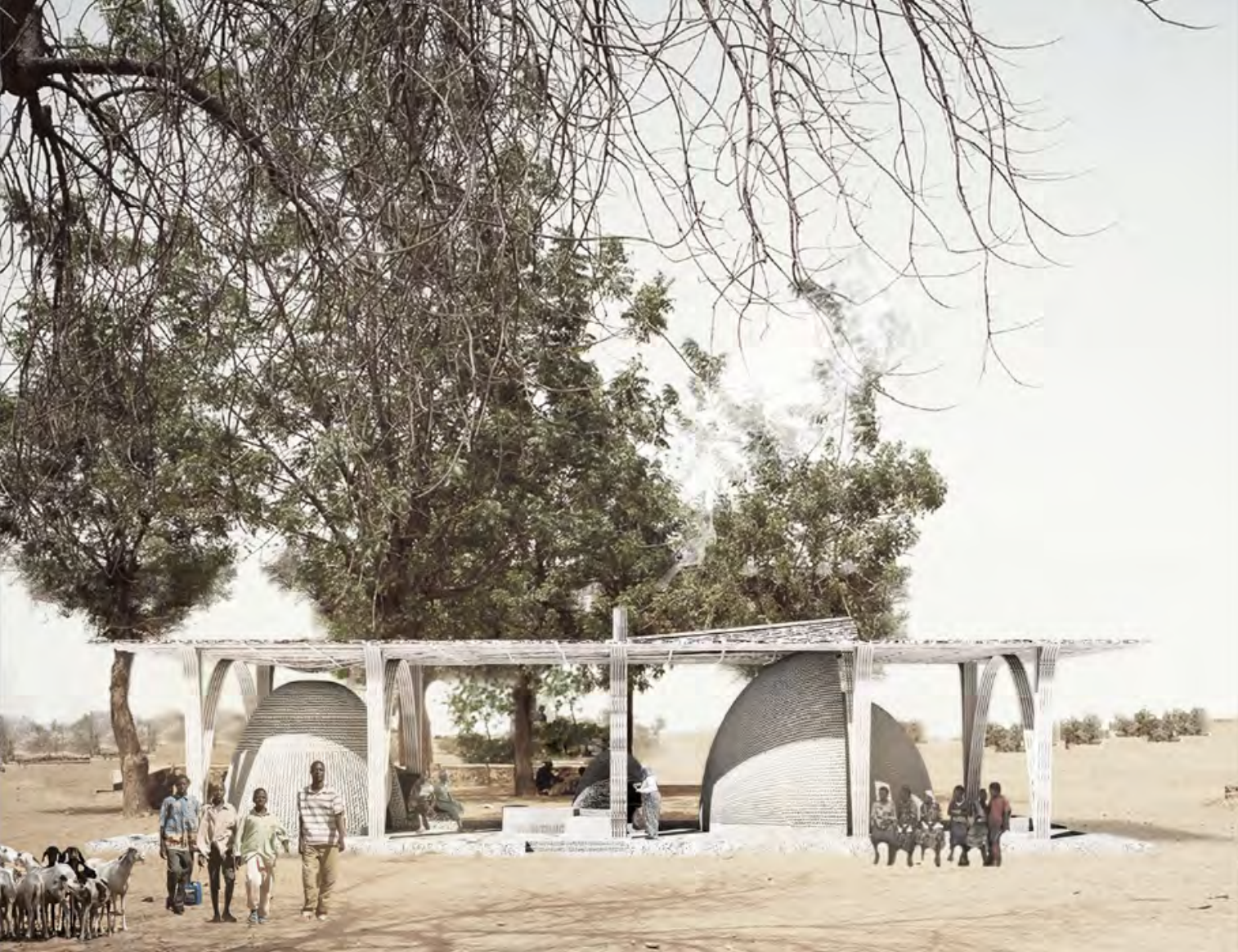

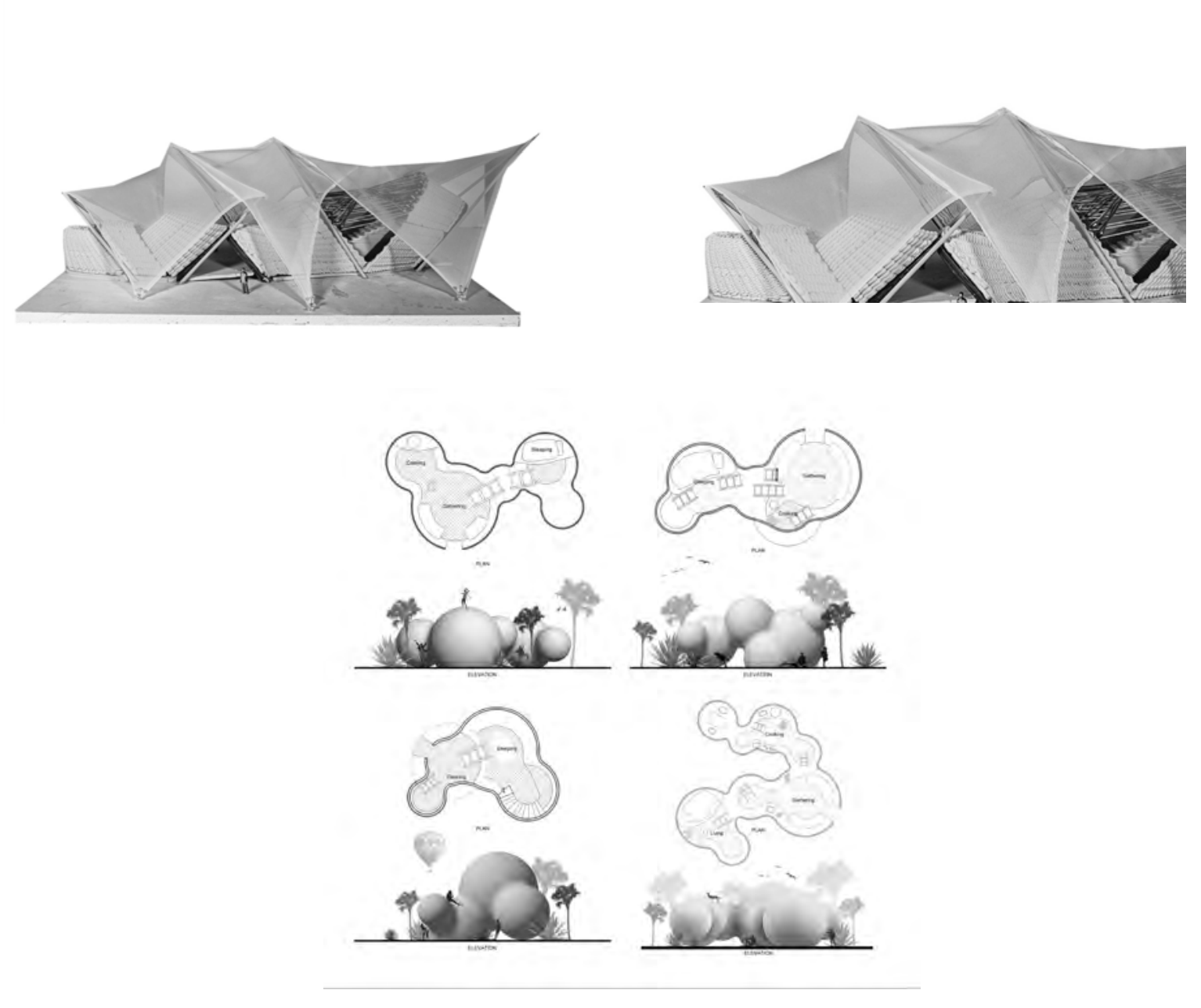

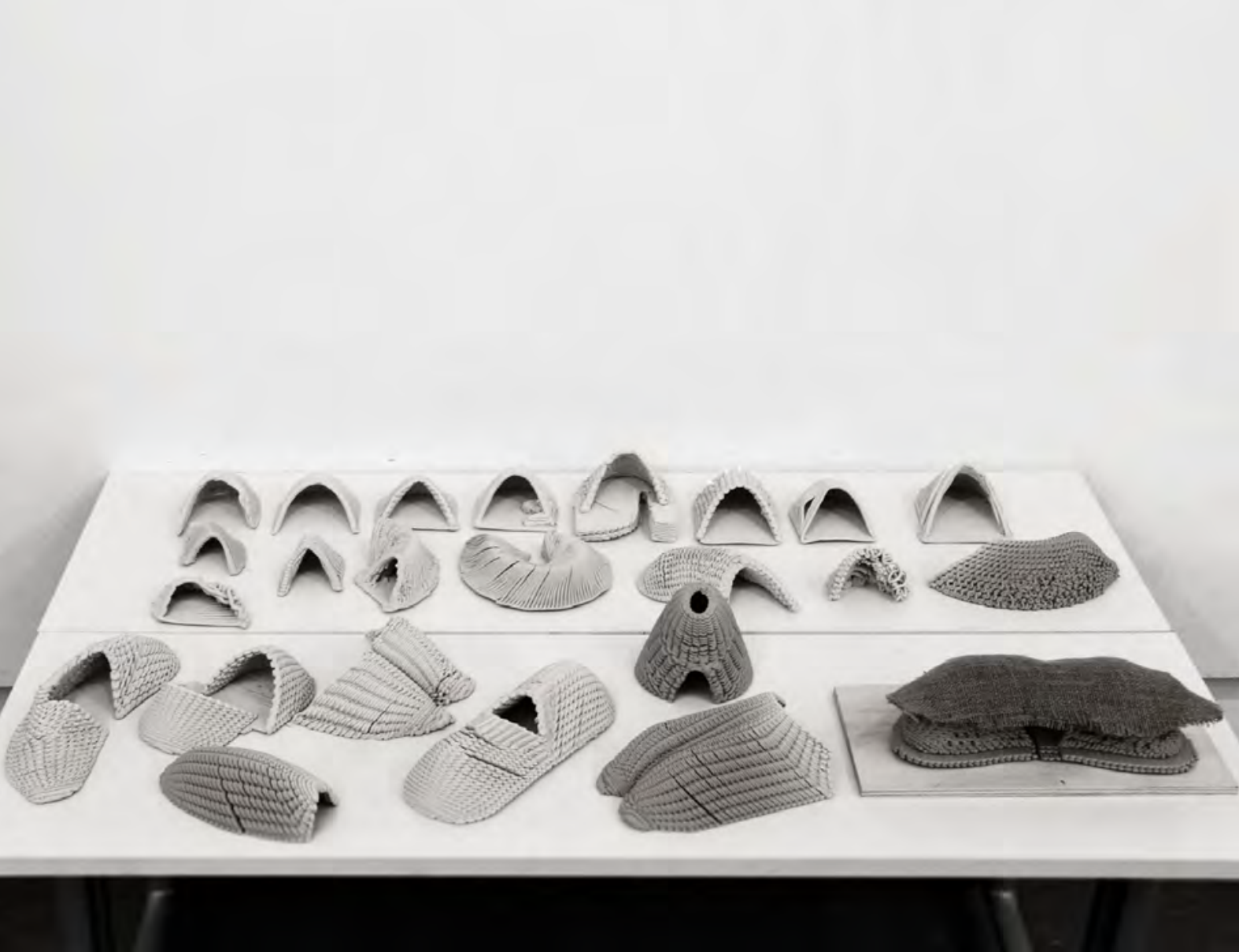

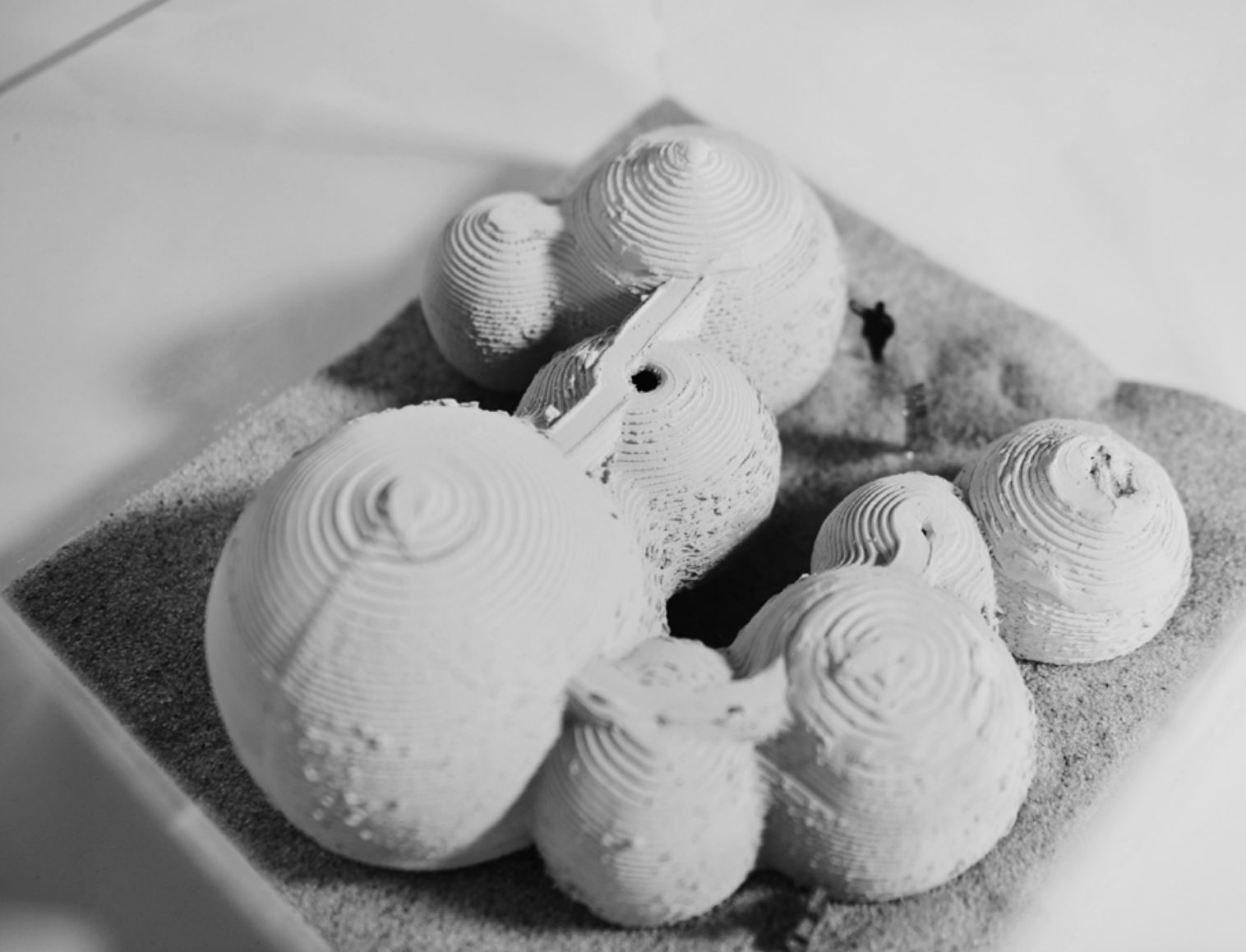

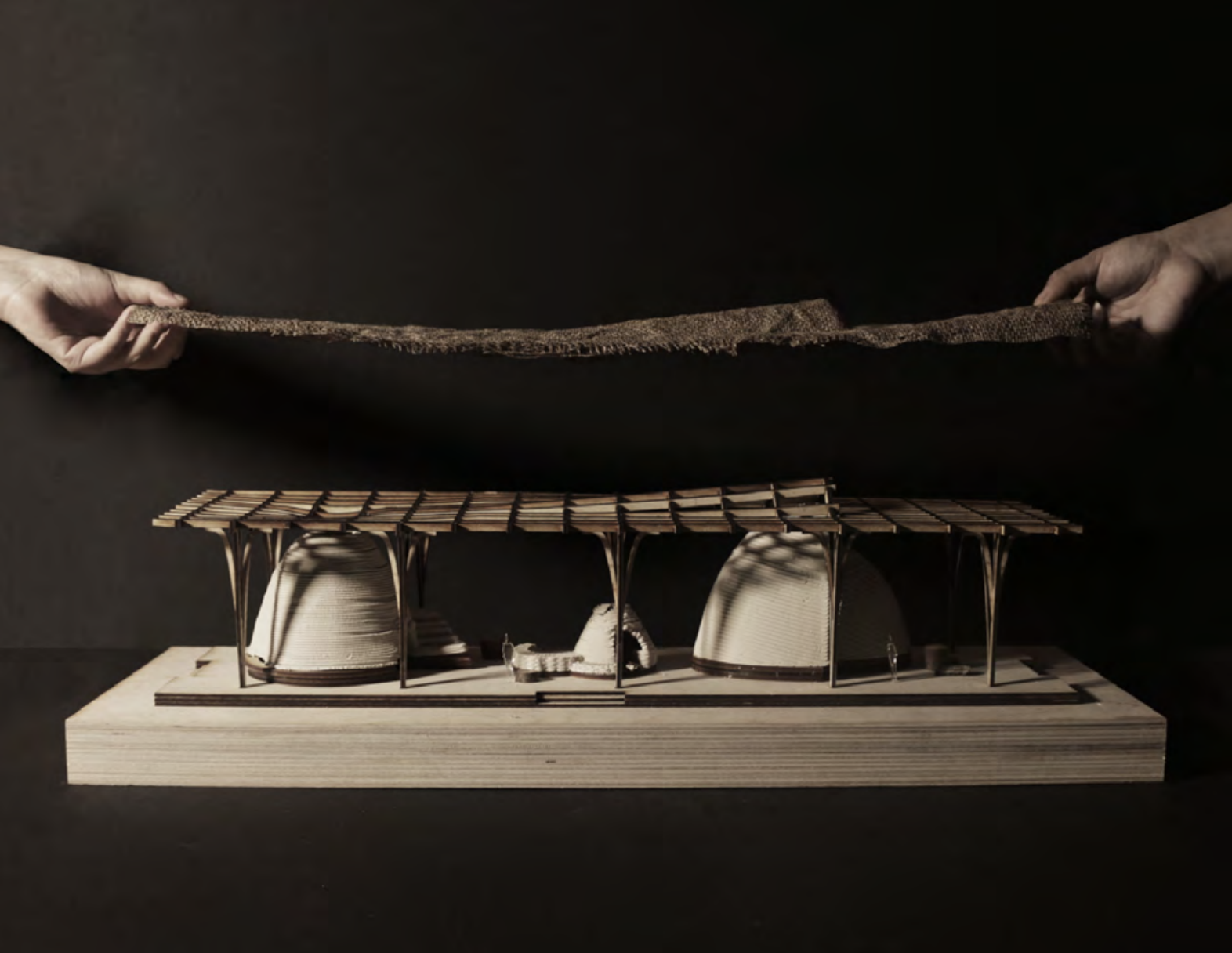

This research culminated in the design of five unique, 3D printed shelters. The proposal was for a low-cost housing prototype for Darfur. The house has three main functions: gathering, sleeping, and eating. Locally sourced soil was used for printing. Further, materials like straw, palm leaves, jute, and fabric were used as cladding for roofs and openings. The potential for generating apertures, integrated furniture, and staircases that integrate with vaults and domes were tested at a 1:50 scale. Techniques for inserting wooden sticks between layers of prints were explored to accommodate auxiliary systems like a staircase or secondary roof structure. One of the printing methods took the unconventional approach of layer depositions in a bath of sand to eliminate the need for conservative print angles or printed support material. Once the clay print was dry, the sand was excavated from within the dome. The projects also looked at the experiential quality of the printed adobe spaces, where the entry of light, air, and water into the built space is carefully crafted. This research is being further developed in the ongoing spring semester, where the mud printing is integrated with a wooden roof.

Inflection Point By Satoru Igarashi, Katherine Martin, Josymar Rodriguez, and Matthew Stoll, M.Arch ‘20
University of Oregon / Advisor: Justin Fowler

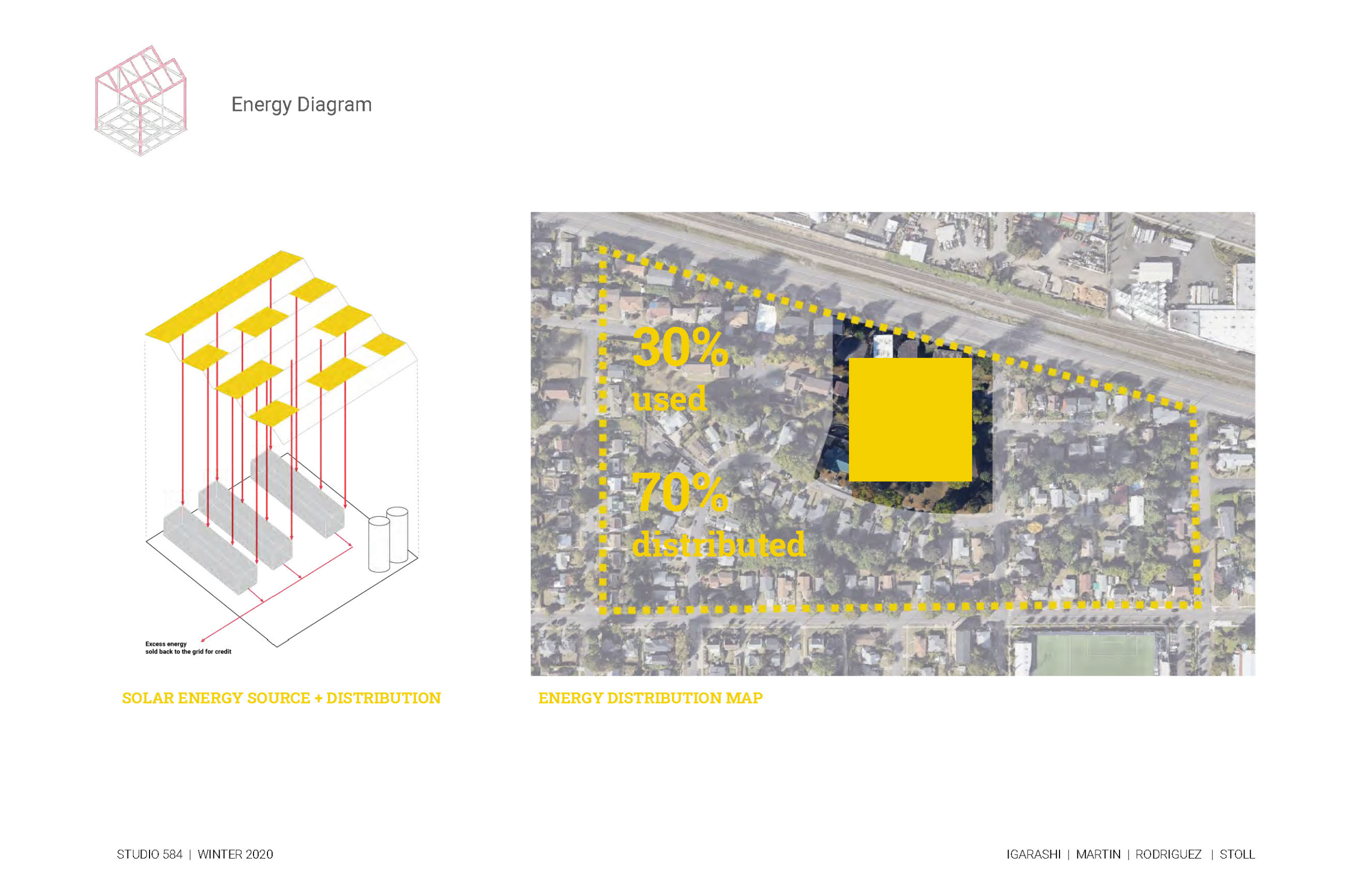

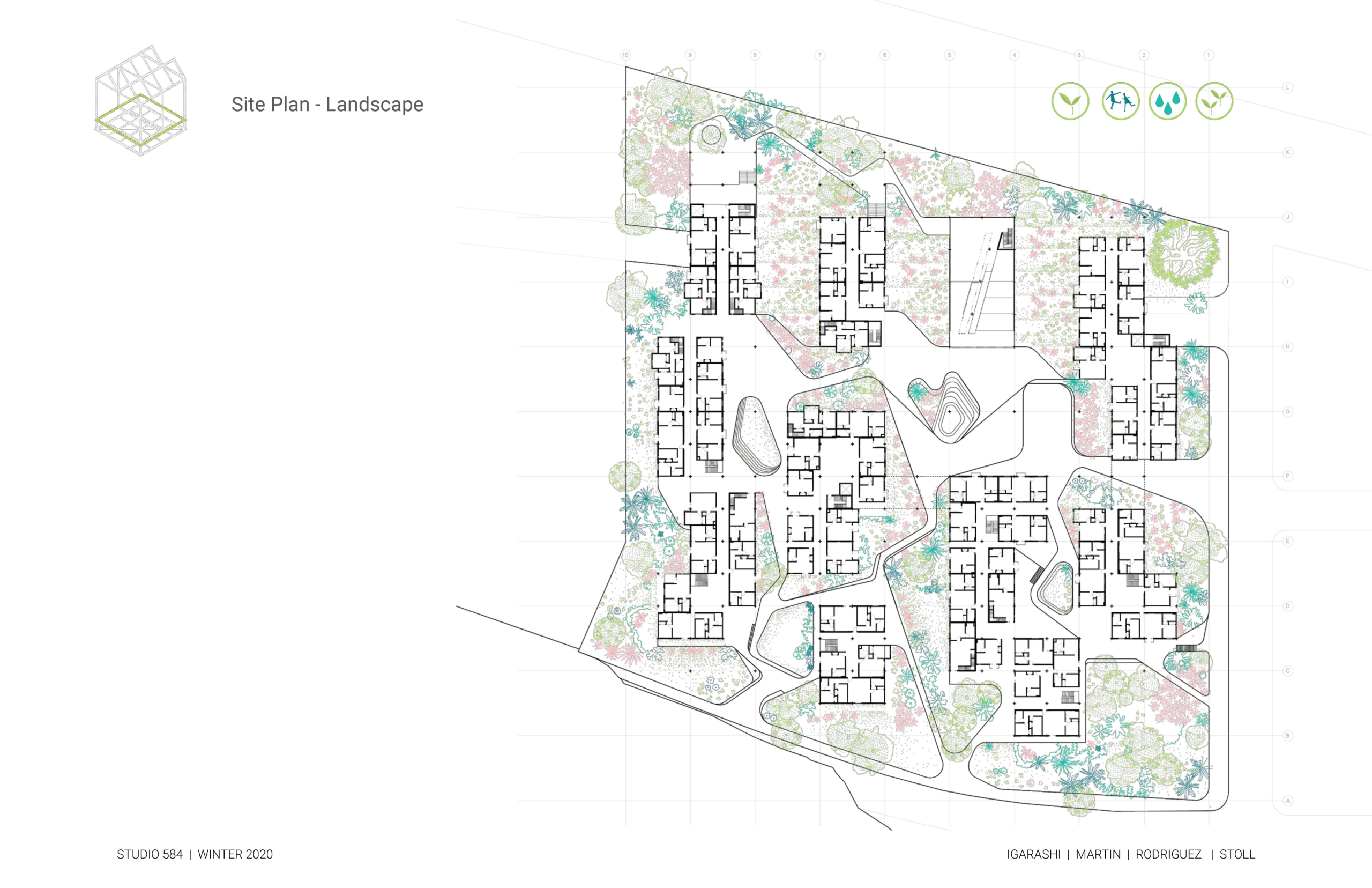

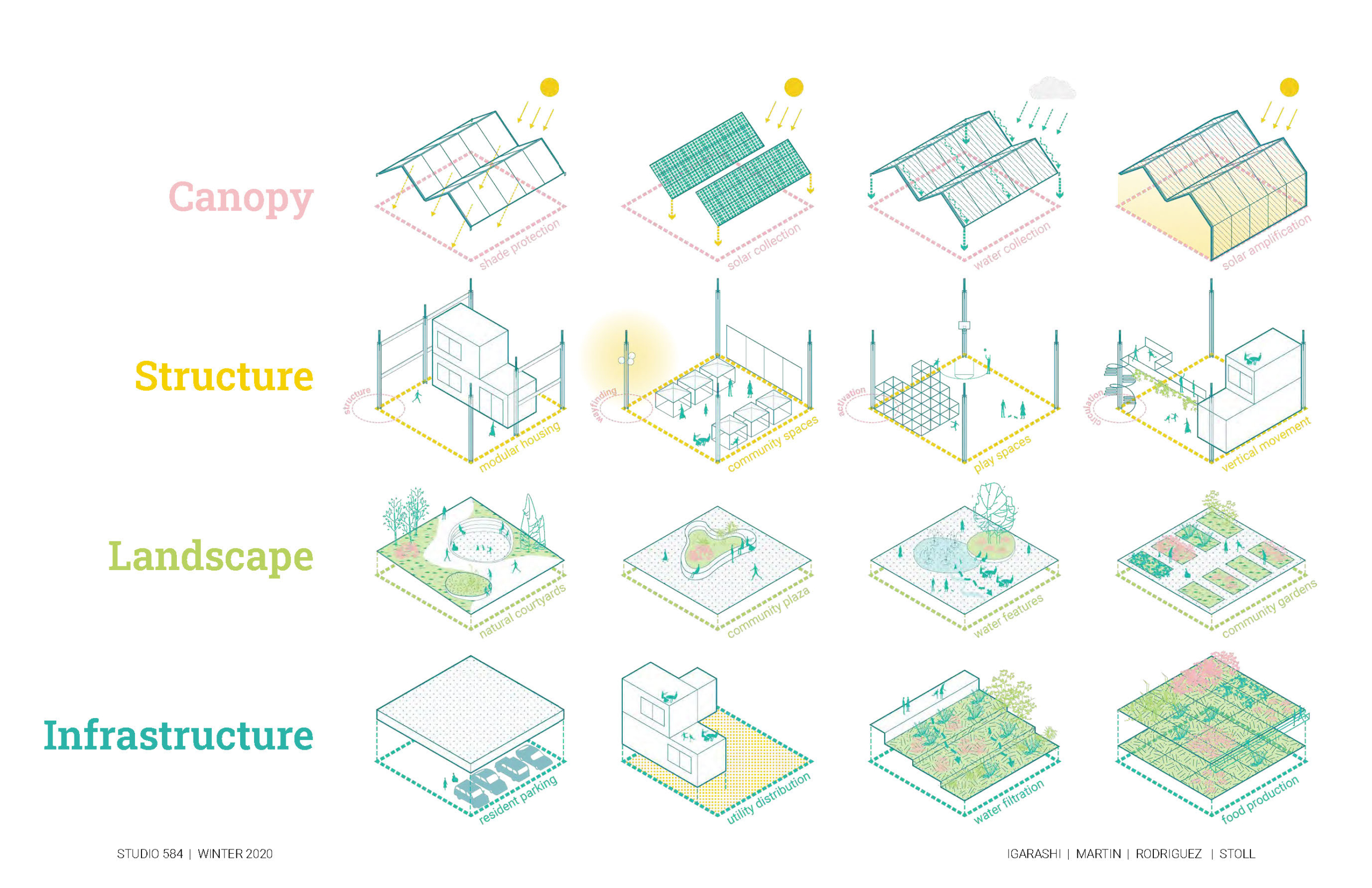

Developed in the Winter 2020 graduate studio on housing relief at the University of Oregon’s Portland Architecture Program, The “Inflection Point” is a social housing proposition for Northeast Portland that argues for a Green New Deal program of decarbonization that does more than just the “less bad.” This prototype employs an adaptable framework that integrates modular housing, energy and water infrastructure, and an accessible landscape to provide social, recreational, and productive amenities for the residents and broader community. The proposal includes a mass timber structure, water reclamation strategies, and solar energy capture for its distribution to the site and the surrounding neighborhood.

Conducted by Program Director Justin Fowler, and working in consultation with Portland’s Public Housing Authority (Home Forward) and Lever Architecture, the studio explored proposals for Home Forward’s Dekum Court site in Northeast Portland currently being redeveloped for increased housing density on its heavily-sloped 5.5-acre lot between residential and industrial areas. In the spirit of past social housing design practices and reform from the Works Progress Administration (WPA) of Red Vienna to the London County Council, students worked in teams to address issues of climate-induced migration, sustainability, and public health through care- and justice-based approaches to housing and landscape design.

Team
After working in the field of brand design for many years, Satoru Igarashi had decided to pivot his career by finding an outlet which can provide more meaningful and improved experiences through design.

Katherine Martin is a graduate of Georgia Tech and worked for two years in one of the largest firms in Atlanta. She enrolled at the University of Oregon to further her knowledge on passive sustainable design strategies.

Josymar Rodriguez a Fulbright Scholar and a 2017 Young Leaders of the Americas Fellow. She is the co-founder of INCURSIONES, an architecture studio and social initiative in her hometown of Caracas, Venezuela.

After four years of working professionally on radically-adaptive reuse projects in the historic urban center of his hometown of Cincinnati, Ohio, Matthew Stoll returned to Portland to focus on creating positive social impact through space.

Center for Autonomous Witness by Will Reynolds
Georgia Institute of Technology / Advisor: Keith Kaseman – CORE III Studio, Arch 6030

The intent of this project is to facilitate a new form of justice – one that holds those enforcing the law to a new standard of honesty and transparency. Body cameras (bodycams) have proved to be ineffective. Though they are mandated by every state, less than 10% of cases of police brutality are captured on body cams. This is because officers do not use them, will turn them off leading up to the conflict, or will tamper with the footage after the event. This is unacceptable

It is now time to use the advancements of technology and the accessibility of digital information to hold law enforcement officers accountable for their actions.

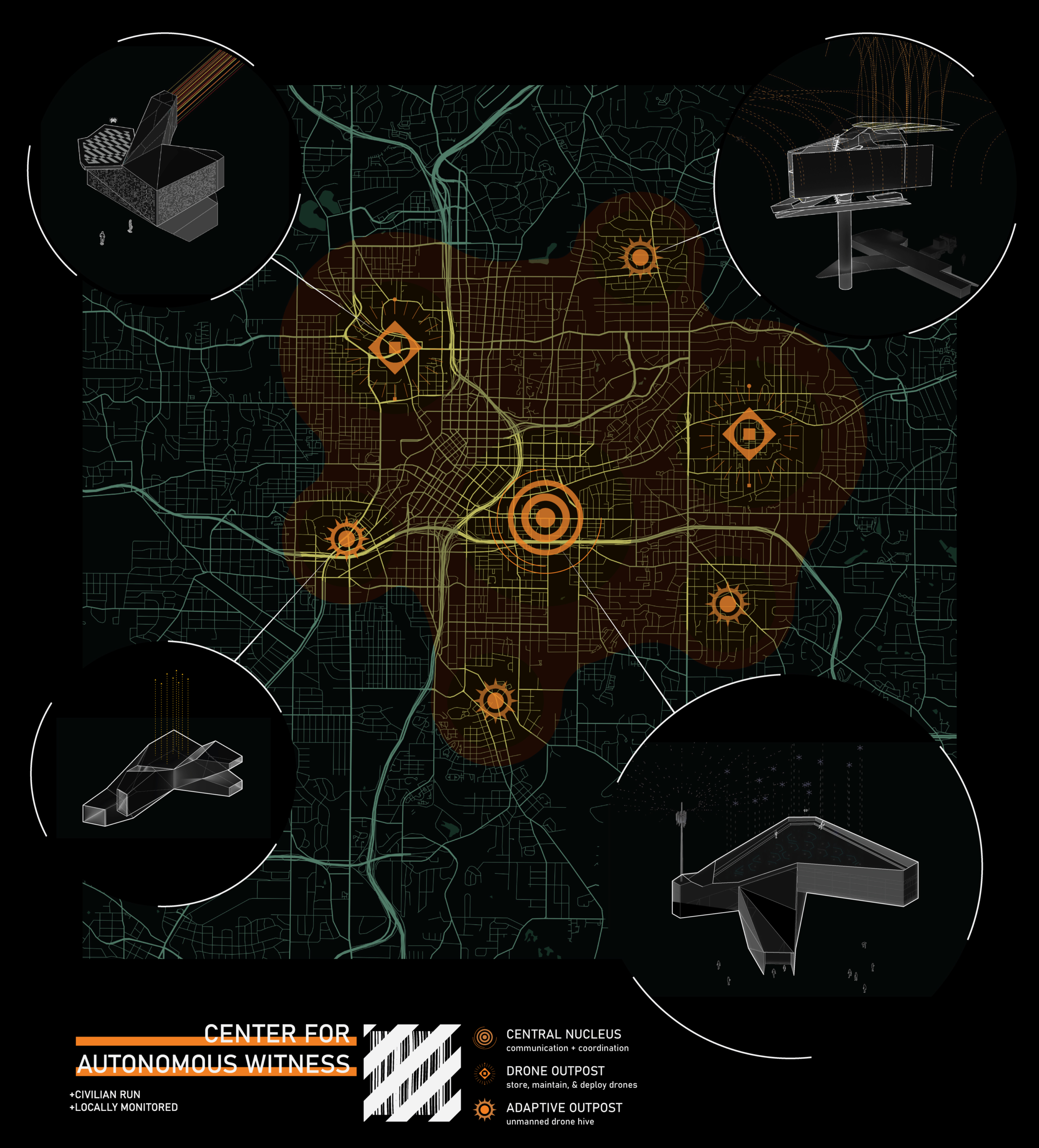

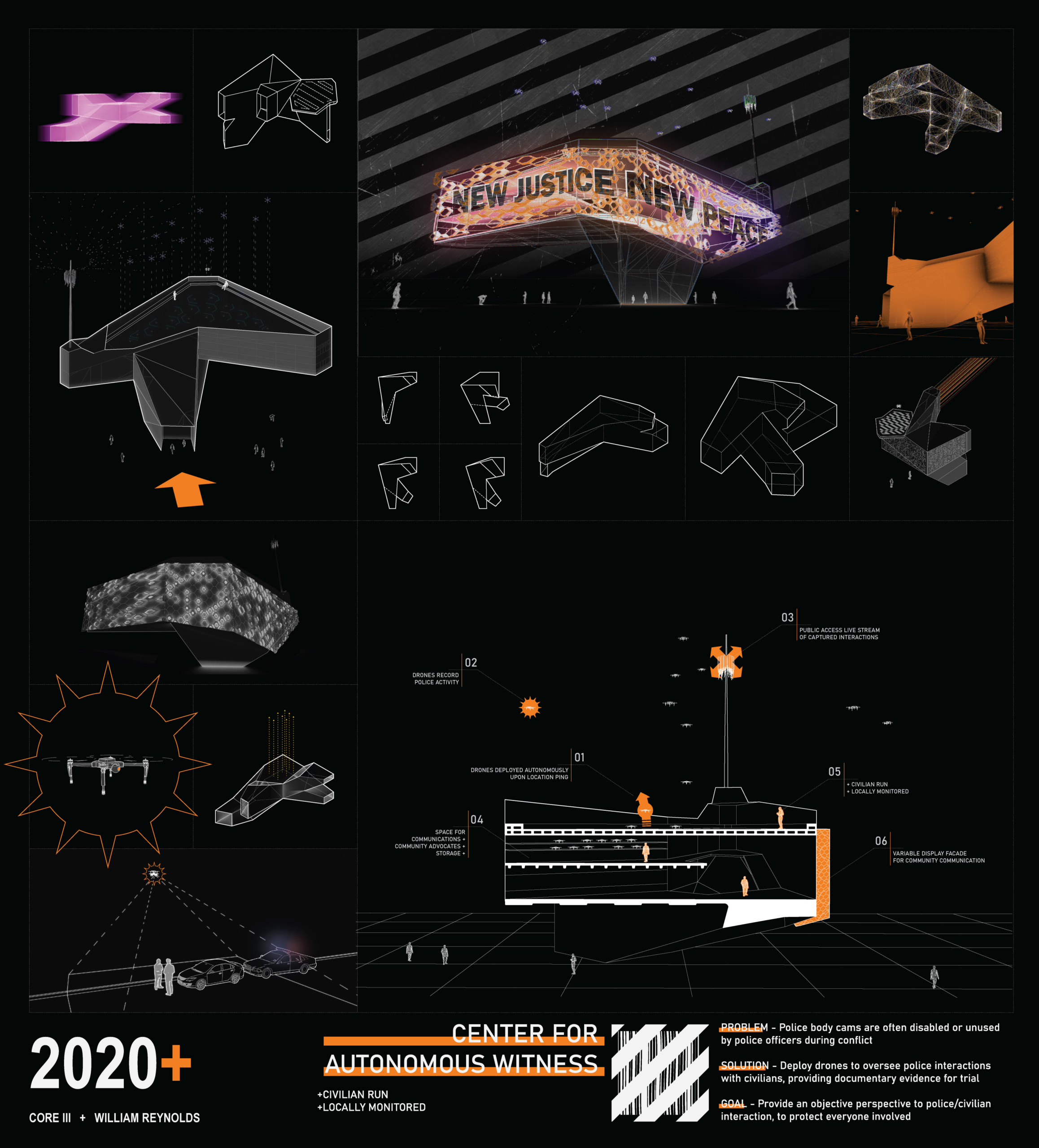

This system of drone outposts is dispersed throughout a city. The structures, or outposts, deploy drones when a civilian reports a police stop. Ideally, this report could be vocally activated with a smartphone – “Hey Siri, the police are here.” The drone arrives onsite and records the police throughout the interaction. The information is streamed back to the outpost to be monitored by civilians.

These drone outposts would act as a facility to store and maintain drones, store and broadcast information securely, and create a safe space for civilians. This new building typology could be freestanding or occupy existing structures like the space between billboards.

Check back on Friday, August 7th for the next edition of the 2020 Student Showcase. Thanks for reading!
